FIBER OPTIC ADAPTORS

  • Category : Fiber Optic, Fiber Panels And Adapters, Adapters,
  • Part Number : DC-ADXX-BB-Y-ZZ, DC-ADXX-BB-Y-FL-ZZ
Download datasheet images

FIBER OPTIC ADAPTORS

Description

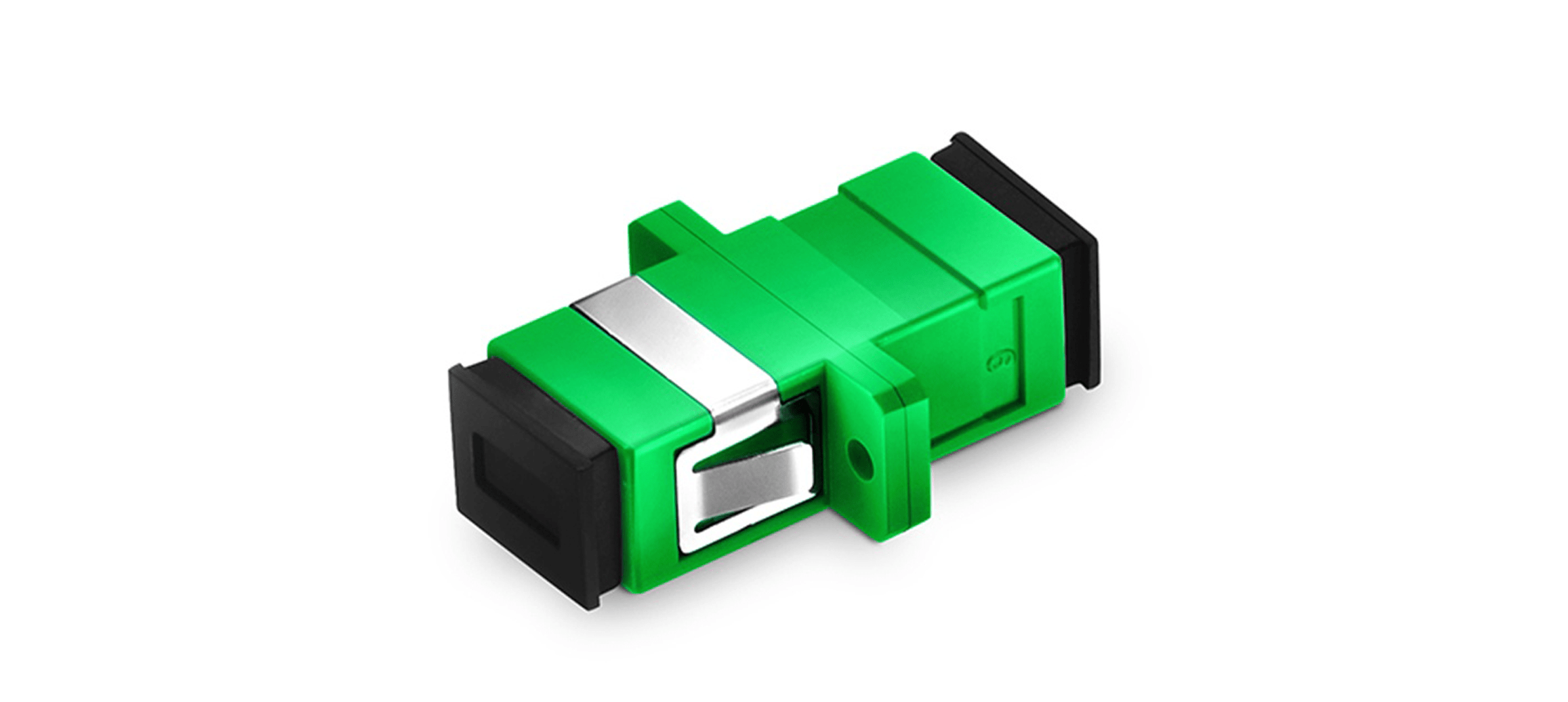

Datacom Single Mode SC/APC & LC/APC adaptors are compact in design with low insertion, return loss and back reflection. The sleeves are enclosed in high-quality engineering plastic designed for all fiber optic connector types ensuring the corresponding connector parts dock well and are securely held. Datacom fiber adapters are constructed of engineered thermoplastic with precision zirconia ceramic split sleeves providing low loss fiber connections over high and low temperature extremes. Datacom connector adaptors are compact in design with low insertion, return loss and back reflection The sleeves are enclosed in high-quality engineering plastic designed for all fiber optic connector types ensuring the corresponding connector parts dock well and are securely held. Adapters are available with mounting flanges or flangeless for higher density applications.

Application

  • Patch panel and wall box connection interface.
  • FTTH Applications.
  • Telecoms, Datacenters.
  • User outlet, Industrial Patch Panel.
  • Telecom Rooms, Datacenters, LAN & WAN.

Features

  • High precision alignment.
  • Low insertion and return loss and back reflection.
  • Available in Plastic and metal housing.
  • Easy installation with a simple clamping mechanism.
  • Available in flanged and flangeless type.
  • Metal spring latch for panel retention.
  • Dust protection caps as standard.
  • Precision zirconia ceramic split sleeve.

Standards Compliance

  • TIA-568.3-D
  • TIA-604-3, FOCIS-3
  • IEC61754-4
  • GR-326 or IEC 61300 series
  • RoHS

Ordering Information

Datacom Flanged Adaptor Zirconia Sleeve. > DC-ADXX-BB-Y-ZZ
Datacom Flangless Adaptor Zirconia Sleeve. > DC-ADXX-BB-Y-FL-ZZ
