INLINE JOINT CLOSURE IP68 BUCKLE LOCK

  • Category : Fiber Optic, Fiber Management Enclosures, Inline Enclosures,
  • Part Number : DC-JCIN072F-BL, DC-JCIN288F-BL
Download datasheet images

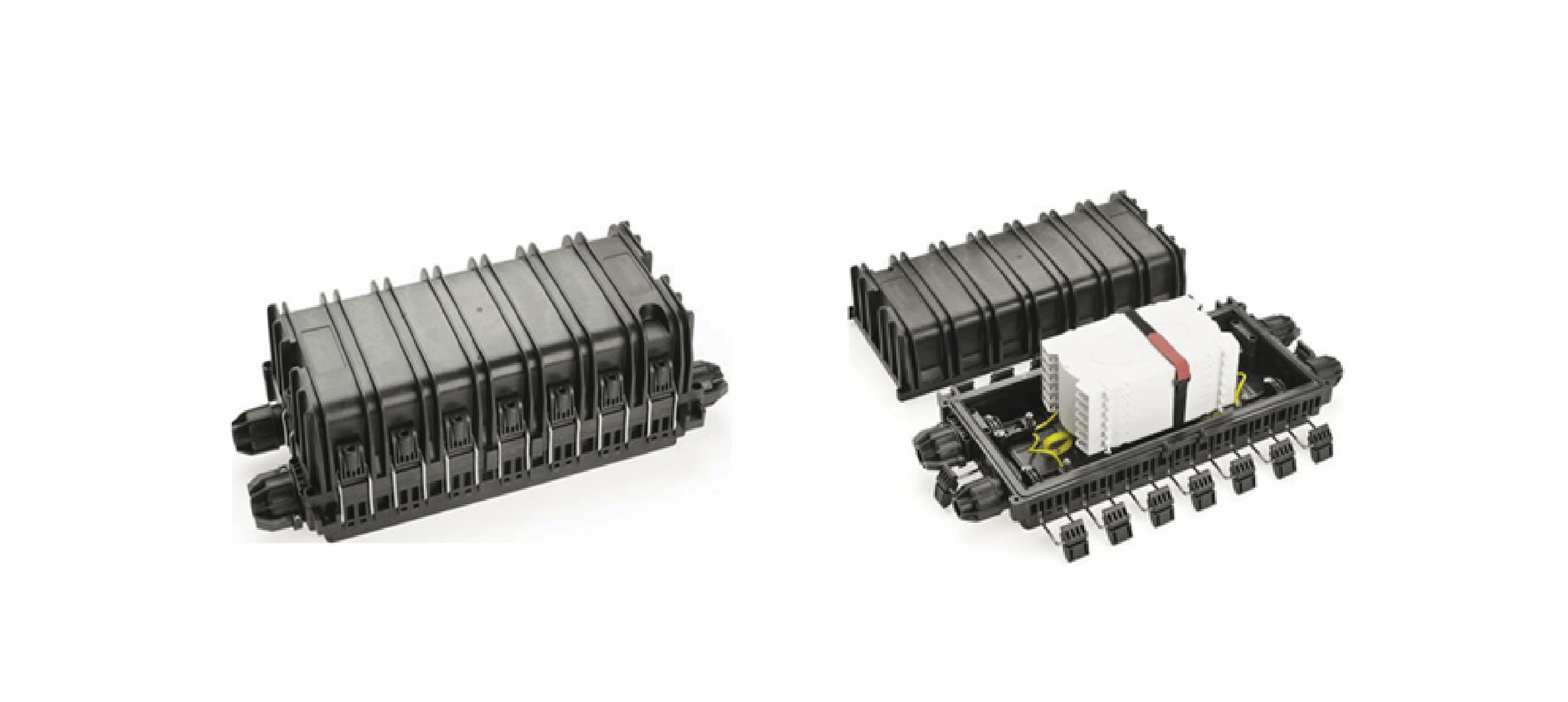

INLINE JOINT CLOSURE IP68 BUCKLE LOCK

Description

Datacom fiber optic Buckle Lock splice closure is a kind of multi-purpose optical cable connection product, which can connect and divide optical fiber. The box can be applied to a variety of optical cable (loose sleeve, skeleton, ribbon, etc.) and can be installed in a variety of environments (overhead, wall, pipe-line, manhole, underground), and for a variety of connecting methods (distribution, bridge, branch etc.).

Application

  • Aerial mounting
  • Manhole mounting
  • Wall mounting
  • underground

Features

  • Structure: Compact, watertight and no screw design, open easily and user friendly.
  • Capacity: DC-JCIN072F-BL support maximum 72 cores; DC-JCIN288F-BL support maximum 288 cores.
  • Diameter: total 4 ports and suitable for Φ 10 to 18 mm Cable.
  • Sealing: Box sealed by buckles around and cables ports sealed by nuts to meet IP68.
  • Installation: Aerial mounting, Manhole mounting, Wall mounting and underground.

Standards Compliance

  • ROHS

Ordering Information

Datacom Inline Joint Closure IP68 Rated 72F With Splice Tray Buckle Lock. > DC-JCIN072F-BL

Datacom Inline Joint Closure IP68 Rated 288F With Splice Tray Buckle Lock. > DC-JCIN288F-BL
